Inicio /Productos/Motor de pasos del freno/NEMA23 Stepper Motor With Brake Shaft 57mm Diameter 6.35/8.0mm Stepping Motor 3.0-4.0A Power Off NEMA23 Hybrid Motor DC24V With Brake

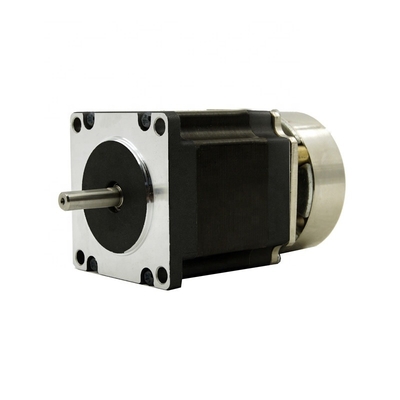

NEMA23 Stepper Motor With Brake Shaft 57mm Diameter 6.35/8.0mm Stepping Motor 3.0-4.0A Power Off NEMA23 Hybrid Motor DC24V With Brake

10 Pieces
MOQ
$21.58(10 - 99 Pieces) $21.03(100 - 499 Pieces) $20.36(>=500 Pieces)
Precio
NEMA23 Stepper Motor With Brake Shaft 57mm Diameter 6.35/8.0mm Stepping Motor 3.0-4.0A Power Off NEMA23 Hybrid Motor DC24V With Brake
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Model Number: NEMA23 motor with brake
Phase: 2
Type: Hybrid
Current / Phase: 3.0-4.0A
Shaft diameter: 6.35/8mm
Motor holding torque: 1.3Nm/2.3Nm/2.6Nm/3.5Nm
Matched driver: JB542C
Leads: 4wires
Service: Customization
Información básica
Model Number: NEMA23 motor with brake
Pago y Envío Términos
Packaging Details: Carton
Descripción de producto

If you need 3D model of the motor, please give us your email address and we will email you it.


Specifications

Model

Length (L:mm)

Motor

Holding

Torque

(N.m)

Current (A/Phase)

Resistance

(Ω)

Inductance

(mH)

Motor

Rotor

inertia

(g.cm2)

Shaft

diameter

(D:mm)

Shaft

Extension

(mm)

Brake

Torque

(N.m)

Weight

(kg)

Matched

driver

57HSB41A43006C

72

0.6

3.0

0.7

1.4

120

6.35

Leveling

block

0.5x20

1.3

0.85

JB542C

57HSB51A43006C

82

1.0

3.0

0.74

1.2

275

6.35

1.05

57HSB56A43006C

87

1.3

3.0

0.75

2.4

300

6.35

1.1

57HSB56A43008C

87

1.3

3.0

0.75

2.4

300

8.0

1.1

57HSB76A44006C

107

2.3

4.0

0.5

2.0

480

6.35

1.4

57HSB76A44008C

107

2.3

4.0

0.5

2.0

480

8.0

1.4

57HSB85A44008C

116

2.6

4.0

0.8

3.2

520

8.0

1.6

57HSB115A44008C

146

3.5

4.0

0.5

2.3

600

8.0

2.1

Note: The brake is DC24V power-off brake, other voltage can be customized as required

Dimension unit:mm

Wiring Diagram

Note:

When installing the motor, be sure to fix the position by using the front end cover of motor, and pay attention to the tolerance, strictly guarantee the concentricity of the motor shaft and the load.
